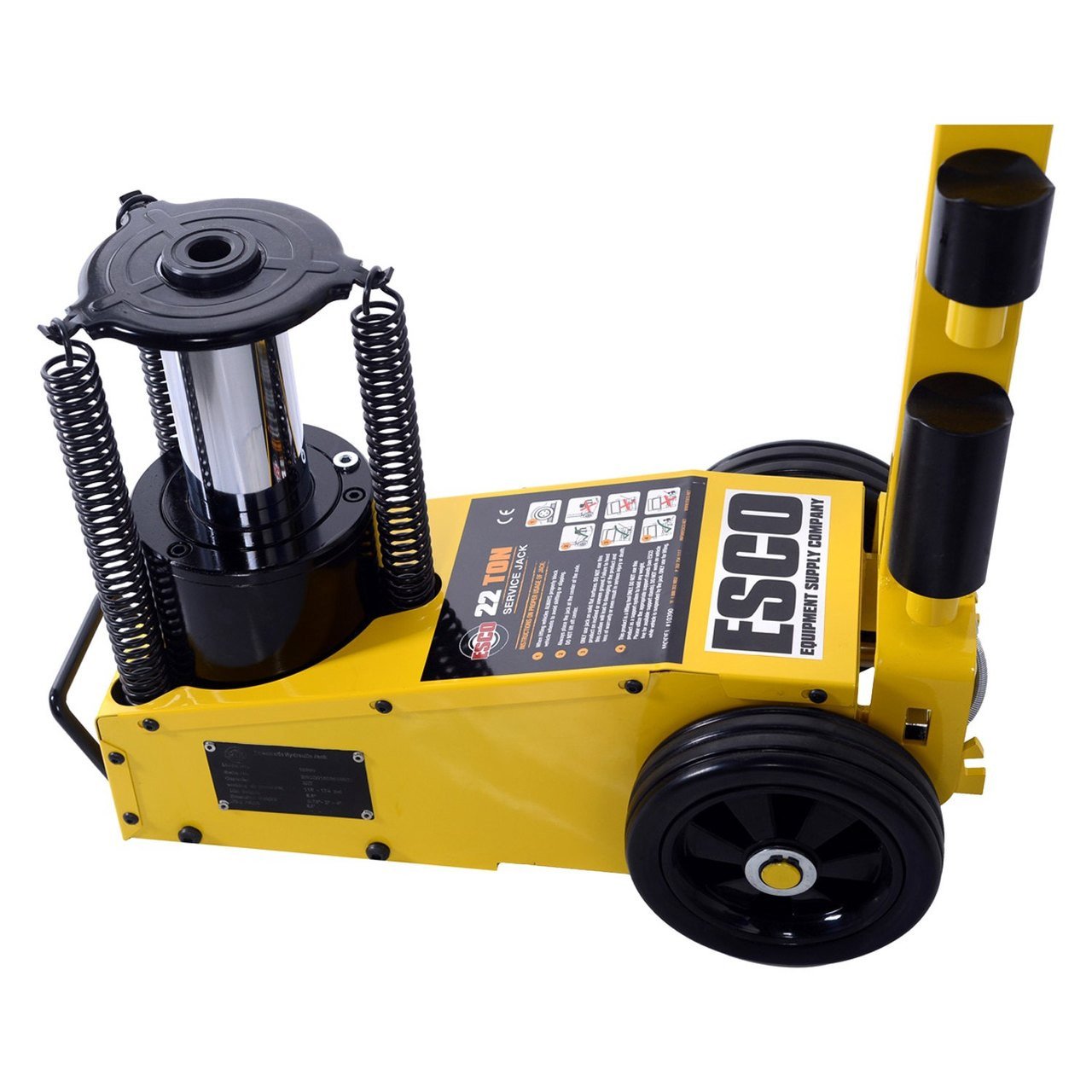

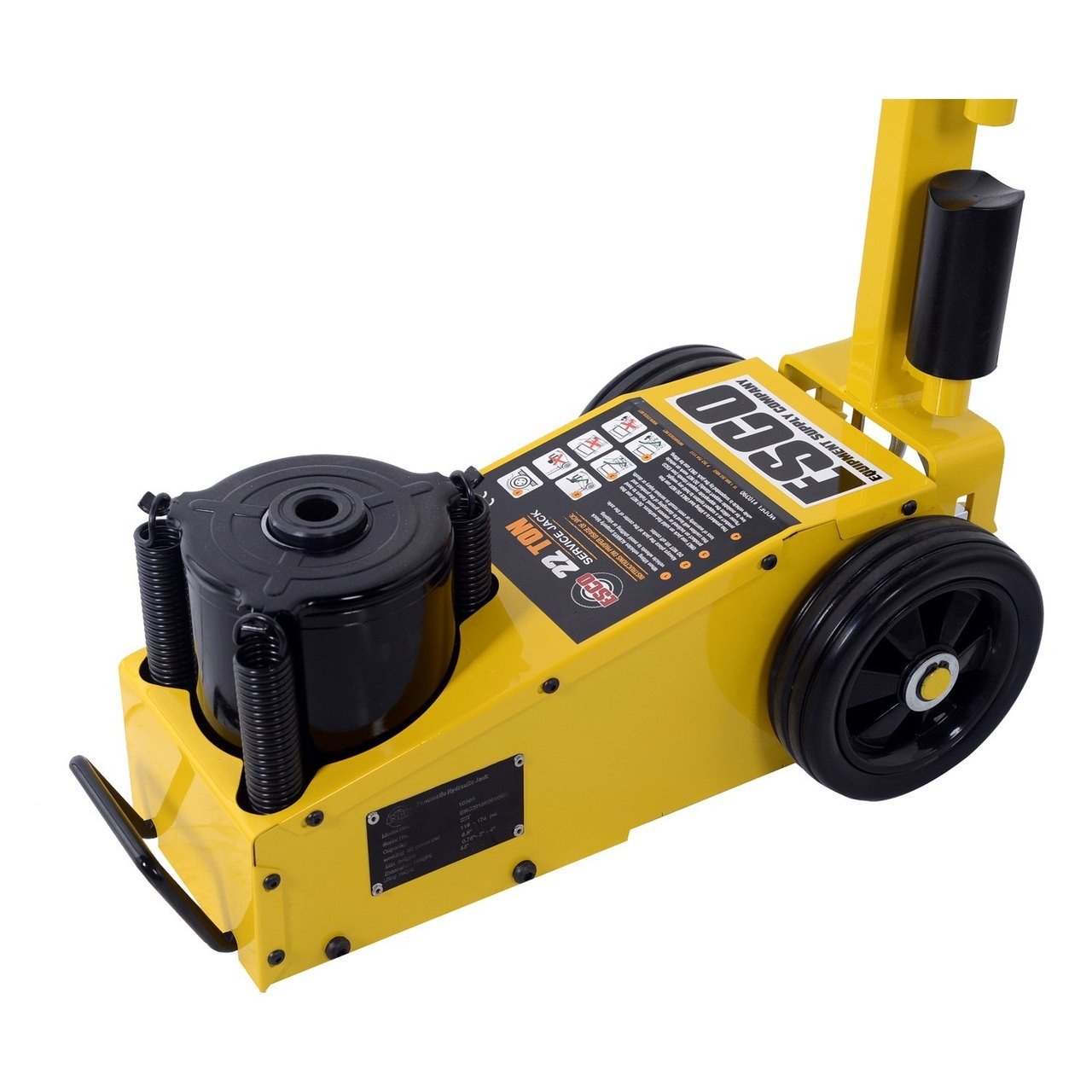

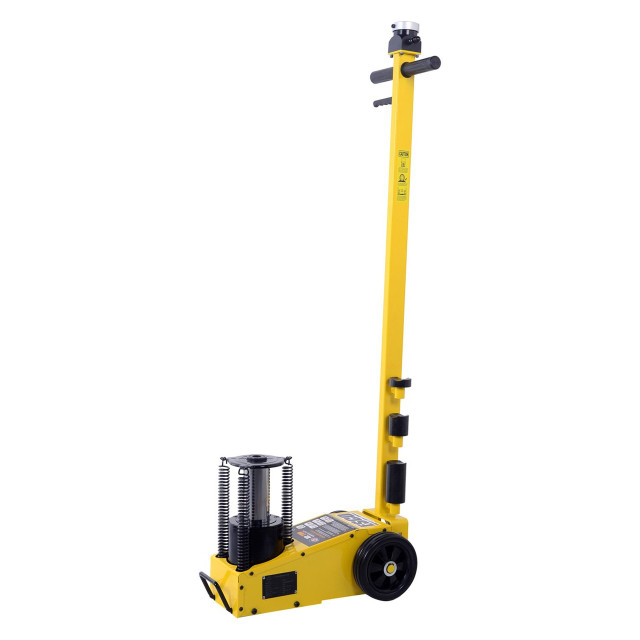

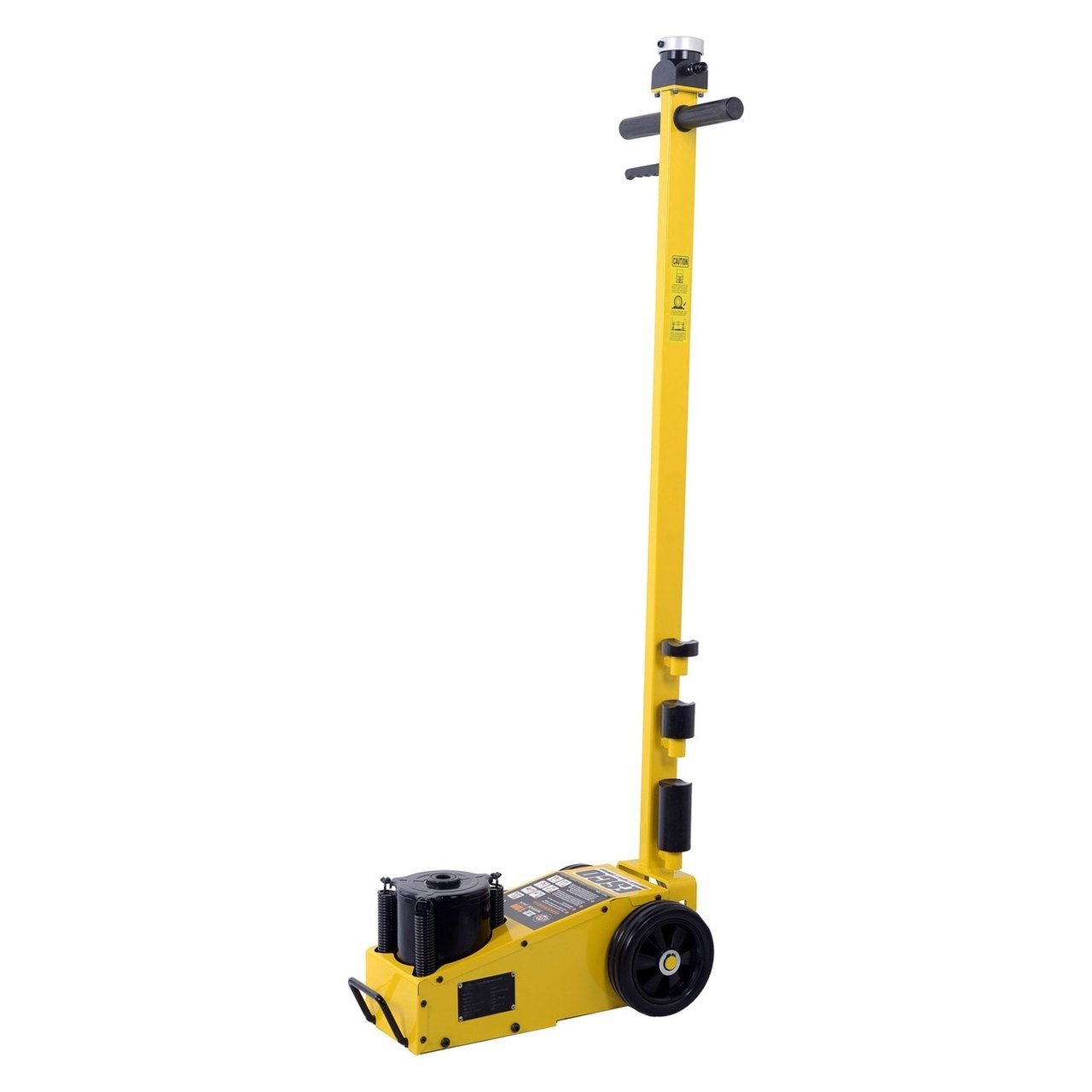

The ESCO 22-Ton Hydraulic Service Jack (10390) is engineered for heavy-duty performance, ensuring durability and efficiency for automotive and industrial applications. Featuring a fully pneumatic design, this jack offers air-powered ascent and descent, eliminating manual effort. Its innovative 3-spring system stabilizes the cylinder for precise lifting, while a redesigned casing reduces debris entry, enhancing reliability.
Features:
- Fully pneumatic system for air-powered lifting and lowering.
- 3-spring design ensures stability and smooth operation.
- Redesigned cylinder and casing to minimize debris interference.
Benefits:
- Simplified, hands-free operation with air control.
- Increased durability and extended jack lifespan.
- Enhanced safety and precision during vehicle lifting.
Technical Specifications:
- Lifting Capacity: 22 Ton (44,000 lbs.)
- Air Pressure: 116–174 PSI
- Min./Max. Height: 8.5 in. / 21.35 in.
- Lifting Height: 5.5 in.; Extension Screw: 3.35 in.
- Handle Length: 48.8 in.
- Weight: 66 lbs.
- Warranty: 1 Year
